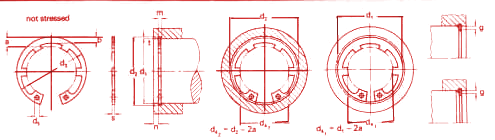

DIN 984
| Nominal dimension | RING | GROOVE | ||||||||||
Housing dia. d1 |
s h11 |
d3 |
Tolerance |
a ~ |
b ~ |
d5 |
Coefficient K (kg x mm) |
Weight ( kg /1,000) |
d2 |
Tolerance |
M min dim. |
Ax.groove area Fp (mm2) |
16 |
1.00 |
17.30 |
+0.180 |
3.30 |
2.00 |
1.70 |
1849 |
0.720 |
16.80 |
+0.110 |
1.10 |
20.60 |
17 |
1.00 |
18.30 |
-0.100 |
3.60 |
2.50 |
1.70 |
1811 |
0.800 |
17.80 |
+0.110 |
1.10 |
21.88 |
18 |
1.00 |
19.50 |
- |
4.10 |
2.50 |
1.70 |
1825 |
0.900 |
19.00 |
+0.150 |
1.10 |
29.03 |
19 |
1.00 |
20.50 |
+0.210 |
3.70 |
2.50 |
2.00 |
1725 |
0.990 |
20.00 |
+0.150 |
1.10 |
30.60 |
20 |
1.00 |
21.50 |
-0.130 |
3.80 |
2.50 |
2.00 |
1695 |
1.060 |
21.00 |
+0.150 |
1.10 |
32.20 |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
21 |
1.00 |
22.50 |
- |
3.90 |
2.50 |
2.00 |
1729 |
1.170 |
22.00 |
+0.150 |
1.10 |
33.80 |
22 |
1.00 |
23.50 |
- |
3.90 |
2.50 |
2.00 |
1760 |
1.280 |
23.00 |
+0.150 |
1.10 |
35.35 |
23 |
1.20 |
24.60 |
- |
4.00 |
2.50 |
2.00 |
2885 |
1.480 |
24.10 |
+0.150 |
1.30 |
40.70 |
24 |
1.20 |
25.90 |
+0.210 |
4.15 |
2.50 |
2.00 |
2845 |
1.600 |
25.20 |
+0.210 |
1.30 |
46.30 |
25 |
1.20 |
26.90 |
+0.210 |
4.30 |
3.00 |
2.00 |
2900 |
1.720 |
26.20 |
+0.210 |
1.30 |
48.20 |
26 |
1.20 |
28.50 |
+0.210 |
4.30 |
3.00 |
2.00 |
2785 |
2.000 |
27.20 |
+0.210 |
1.30 |
50.10 |
27 |
1.20 |
29.10 |
+0.210 |
4.40 |
3.00 |
2.00 |
2660 |
2.000 |
28.40 |
+0.210 |
1.30 |
60.90 |
28 |
1.20 |
30.10 |
+0.250 |
4.80 |
3.00 |
2.00 |
2635 |
2.100 |
29.40 |
+0.210 |
1.30 |
63.10 |
30 |
1.20 |
32.10 |
+0.250 |
4.80 |
3.00 |
2.00 |
2660 |
2.350 |
31.40 |
+0.250 |
1.30 |
67.50 |
32 |
1.20 |
34.40 |
+0.250 |
5.00 |
3.50 |
2.50 |
2660 |
2.500 |
33.70 |
+0.250 |
1.30 |
87.90 |
33 |
1.20 |
35.50 |
+0.250 |
4.90 |
3.50 |
2.50 |
2705 |
2.650 |
34.70 |
+0.250 |
1.30 |
90.30 |
34 |
1.50 |
36.50 |
+0.250 |
5.20 |
3.50 |
2.50 |
5005 |
3.800 |
35.70 |
+0.250 |
1.60 |
92.60 |
35 |
1.50 |
37.80 |
+0.250 |
5.40 |
3.50 |
2.50 |
5050 |
4.000 |
37.00 |
+0.250 |
1.60 |
113.00 |
36 |
1.50 |
38.80 |
+0.250 |
5.50 |
3.50 |
2.50 |
5020 |
4.150 |
38.00 |
+0.250 |
1.60 |
116.00 |
38 |
1.50 |
40.80 |
+0.250 |
6.00 |
4.00 |
2.50 |
5170 |
4.400 |
40.00 |
+0.250 |
1.60 |
123.00 |
40 |
1.75 |
43.50 |
+0.390 |
7.00 |
4.00 |
2.50 |
8010 |
5.300 |
42.50 |
+0.250 |
1.85 |
162.00 |
42 |
1.75 |
45.50 |
+0.390 |
7.00 |
4.00 |
2.50 |
8090 |
6.000 |
44.50 |
+0.250 |
1.85 |
170.00 |
44 |
1.75 |
47.50 |
+0.390 |
7.00 |
4.00 |
2.50 |
7860 |
6.450 |
46.50 |
+0.250 |
1.85 |
177.00 |
45 |
1.75 |
48.40 |
+0.390 |
7.00 |
4.50 |
2.50 |
7815 |
6.600 |
47.50 |
+0.250 |
1.85 |
181.00 |
47 |
1.75 |
50.50 |
+0.460 |
7.00 |
4.50 |
2.50 |
7895 |
6.900 |
49.50 |
+0.250 |
1.85 |
189.00 |
48 |
1.75 |
51.50 |
+0.460 |
7.00 |
4.50 |
2.50 |
7850 |
7.500 |
50.50 |
+0.300 |
1.85 |
193.00 |
50 |
2.00 |
54.20 |
+0.460 |
8.00 |
4.70 |
2.50 |
11140 |
8.500 |
53.00 |
+0.300 |
2.15 |
243.00 |
52 |
2.00 |
56.20 |
+0.460 |
8.00 |
4.70 |
2.50 |
10890 |
9.400 |
55.00 |
+0.300 |
2.15 |
252.00 |
55 |
2.00 |
59.20 |
+0.460 |
8.00 |
5.10 |
2.50 |
11140 |
9.750 |
58.00 |
+0.300 |
2.15 |
266.00 |
57 |
2.00 |
61.20 |
+0.460 |
8.00 |
5.10 |
2.50 |
11270 |
11.650 |
60.00 |
+0.300 |
2.15 |
276.00 |
58 |
2.00 |
62.20 |
+0.460 |
8.00 |
5.10 |
2.50 |
11220 |
12.000 |
61.00 |
+0.300 |
2.15 |
280.00 |
60 |
2.00 |
64.20 |
+0.460 |
8.00 |
5.50 |
2.50 |
11320 |
12.700 |
63.00 |
+0.300 |
2.15 |
290.00 |
62 |
2.00 |
66.20 |
+0.460 |
8.00 |
5.50 |
2.50 |
11270 |
12.750 |
65.00 |
+0.300 |
2.15 |
299.00 |
65 |
2.50 |
69.20 |
+0.460 |
9.30 |
6.00 |
3.00 |
22080 |
16.700 |
68.00 |
+0.300 |
2.65 |
313.00 |
67 |
2.50 |
71.50 |
+0.460 |
10.00 |
6.00 |
3.00 |
22250 |
18.600 |
70.00 |
+0.300 |
2.65 |
323.00 |
68 |
2.50 |
72.50 |
+0.460 |
10.00 |
6.00 |
3.00 |
22245 |
19.300 |
71.00 |
+0.300 |
2.65 |
327.00 |
70 |
2.50 |
74.50 |
+0.460 |
10.00 |
6.00 |
3.00 |
21800 |
20.200 |
73.00 |
+0.300 |
2.65 |
337.00 |
72 |
2.50 |
76.50 |
+0.460 |
10.00 |
6.80 |
3.00 |
21750 |
21.200 |
75.00 |
+0.300 |
2.65 |
346.00 |
75 |
2.50 |
79.50 |
+0.460 |
10.00 |
6.80 |
3.00 |
21580 |
22.600 |
78.00 |
+0.300 |
2.65 |
360.00 |
80 |
2.50 |
85.50 |
+0.540 |
10.00 |
6.80 |
3.00 |
21900 |
25.000 |
83.50 |
+0.350 |
2.65 |
448.000 |
85 |
3.00 |
90.50 |
+0.540 |
12.00 |
7.60 |
3.50 |
36400 |
30.100 |
88.50 |
+0.350 |
3.15 |
477.00 |
90 |
3.00 |
95.50 |
+0.540 |
12.00 |
7.60 |
3.50 |
36450 |
35.500 |
93.50 |
+0.350 |
3.15 |
504.00 |
95 |
3.00 |
100.50 |
+0.540 |
12.00 |
8.20 |
3.50 |
36550 |
40.000 |
98.50 |
+0.350 |
3.15 |
532.00 |
100 |
3.00 |
105.50 |
+0.540 |
12.00 |
8.20 |
3.50 |
35950 |
43.500 |
103.50 |
+0.350 |
3.15 |
559.00 |
110 |
4.00 |
117.50 |
+0.540 |
12.00 |
9.50 |
3.50 |
82450 |
73.000 |
114.00 |
+0.540 |
4.15 |
704.00 |
115 |
4.00 |
122.00 |
+0.630 |
12.00 |
9.50 |
3.50 |
82900 |
82.000 |
119.00 |
+0.540 |
4.15 |
735.00 |
120 |
4.00 |
127.00 |
+0.630 |
12.00 |
9.50 |
3.50 |
81800 |
87.000 |
124.00 |
+0.630 |
4.15 |
767.00 |
125 |
4.00 |
132.00 |
+0.630 |
12.00 |
9.50 |
4.00 |
80900 |
92.000 |
129.00 |
+0.630 |
4.15 |
797.00 |
130 |
4.00 |
137.00 |
+0.630 |
12.00 |
9.50 |
4.00 |
80100 |
102.000 |
134.00 |
+0.640 |
4.15 |
829.00 |
140* |
4.00 |
148.00 |
+0.630 |
14.00 |
11.50 |
4.00 |
77500 |
112.000 |
144.00 |
+0.630 |
4.15 |
892.00 |
150 |
4.00 |
158.00 |
+0.630 |
14.00 |
11.50 |
4.00 |
74800 |
123.000 |
155.00 |
+0.630 |
4.15 |
1198.00 |
160 |
4.00 |
169.00 |
+0.630 |
14.00 |
11.50 |
4.50 |
73700 |
133.000 |
165.00 |
+0.630 |
4.15 |
1275.00 |
170 |
4.00 |
179.50 |
+0.630 |
14.00 |
11.50 |
4.50 |
80000 |
145.000 |
175.00 |
+0.630 |
4.15 |
1355.00 |
