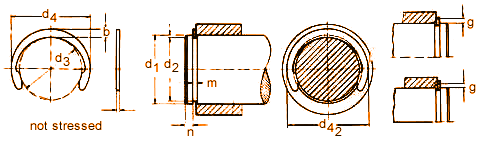

DIN 5103
Nominal dimension |
RINGS | GROOVE |
|||||||
Shaft dia. d1 |
s h 11 |
d3 |
Toler- ance |
b ~ |
Weight (kg x 1,000) |
Max.load |
d2 |
Toler- ance |
M min. |
5.0 |
0.60 |
3.80 |
+0.075 |
1.20 |
0.07 |
55 |
4.0 |
-0.075 |
0.64 |
6.0 |
0.70 |
4.80 |
+0.075 |
1.30 |
0.10 |
65 |
5.0 |
-0.075 |
0.74 |
6.5* |
0.70 |
5.60 |
+0.075 |
1.30 |
0.11 |
65 |
5.8 |
-0.075 |
0.74 |
7.0 |
0.80 |
5.80 |
+0.075 |
1.40 |
0.14 |
80 |
6.0 |
-0.090 |
0.85 |
8.0 |
0.80 |
6.80 |
+0.090 |
1.60 |
0.19 |
95 |
7.0 |
-0.090 |
0.85 |
9.0 |
1.00 |
7.80 |
+0.090 |
1.70 |
0.28 |
105 |
8.0 |
-0.090 |
1.10 |
10.0 |
1.00 |
8.75 |
+0.090 |
1.70 |
0.31 |
120 |
9.0 |
-0.090 |
1.10 |
11.0 |
1.00 |
9.65 |
+0.180 |
1.80 |
0.34 |
130 |
10.0 |
-0.110 |
1.10 |
12.0 |
1.00 |
10.55 |
+0.180 |
1.90 |
0.38 |
155 |
10.9 |
-0.110 |
1.10 |
13.0 |
1.00 |
11.40 |
+0.180 |
2.00 |
0.43 |
185 |
11.8 |
-0.110 |
1.10 |
14.0 |
1.00 |
12.30 |
+0.180 |
2.00 |
0.46 |
215 |
12.7 |
-0.110 |
1.10 |
15.0 |
1.00 |
13.20 |
+0.180 |
2.10 |
0.52 |
250 |
13.6 |
-0.110 |
1.10 |
16.0 |
1.00 |
14.10 |
+0.180 |
2.20 |
0.57 |
290 |
14.5 |
-0.110 |
1.10 |
17.0 |
1.00 |
14.90 |
+0.180 |
2.25 |
0.62 |
330 |
15.4 |
-0.110 |
1.10 |
18.0 |
1.20 |
15.80 |
+0.180 |
2.30 |
0.80 |
360 |
16.3 |
-0.110 |
1.30 |
19.0 |
1.20 |
16.70 |
+0.180 |
2.40 |
0.89 |
410 |
17.2 |
-0.110 |
1.30 |
20.0 |
1.20 |
17.55 |
+0.180 |
2.55 |
1.00 |
450 |
18.1 |
-0.210 |
1.30 |
22.0 |
1.20 |
19.35 |
+0.210 |
2.80 |
1.20 |
550 |
19.9 |
-0.210 |
1.30 |
23.0 |
1.20 |
20.20 |
+0.210 |
2.90 |
1.30 |
600 |
20.8 |
-0.210 |
1.30 |
24.0 |
1.20 |
21.10 |
+0.210 |
3.00 |
1.38 |
660 |
21.7 |
-0.210 |
1.30 |
25.0 |
1.20 |
22.00 |
+0.210 |
3.15 |
1.52 |
710 |
22.6 |
-0.210 |
1.30 |
26.0 |
1.20 |
22.90 |
+0.210 |
3.25 |
1.64 |
770 |
23.5 |
-0.210 |
1.30 |
28.0 |
1.50 |
24.60 |
+0.210 |
3.50 |
2.35 |
940 |
25.2 |
-0.210 |
1.60 |
30.0 |
1.50 |
26.30 |
+0.210 |
3.70 |
2.85 |
1050 |
27.0 |
-0.210 |
1.60 |
32.0 |
1.50 |
28.10 |
+0.210 |
4.00 |
3.25 |
1140 |
28.8 |
-0.210 |
1.60 |
35.0 |
1.50 |
30.80 |
+0.250 |
4.30 |
3.75 |
1460 |
31.5 |
-0.250 |
1.60 |
36.0 |
1.75 |
31.70 |
+0.250 |
4.40 |
4.50 |
1550 |
32.4 |
-0.250 |
1.85 |
38.0 |
1.75 |
33.40 |
+0.250 |
4.60 |
4.95 |
1700 |
34.2 |
-0.250 |
1.85 |
40.0 |
1.75 |
35.20 |
+0.390 |
4.90 |
5.55 |
1900 |
36.0 |
-0.250 |
1.85 |
42.0 |
1.75 |
37.00 |
+0.390 |
5.10 |
5.90 |
2100 |
37.8 |
-0.250 |
1.85 |
45.0 |
1.75 |
39.60 |
+0.390 |
5.50 |
7.00 |
2400 |
40.5 |
-0.250 |
1.85 |
48.0 |
1.75 |
42.30 |
+0.390 |
5.90 |
8.10 |
2700 |
43.2 |
-0.250 |
1.85 |
50.0 |
2.00 |
44.00 |
+0.390 |
6.20 |
10.00 |
3000 |
45.0 |
-0.250 |
2.15 |
52.0 |
2.00 |
46.00 |
+0.390 |
6.30 |
10.70 |
3150 |
47.0 |
-0.250 |
2.15 |
55.0 |
2.00 |
48.50 |
+0.390 |
6.50 |
11.50 |
3300 |
50.0 |
-0.250 |
2.15 |
